EFD15 Transformer
1. Working frequence: 10kHz-500KHz
2. Output power: 3.0 to 12 W
3. Working temperature: -40℃ to +125℃
4. Storage temperature: -25℃ to +85℃
5. Storage humidity: 30 to 95%
PRODUCT DESCRIPTION

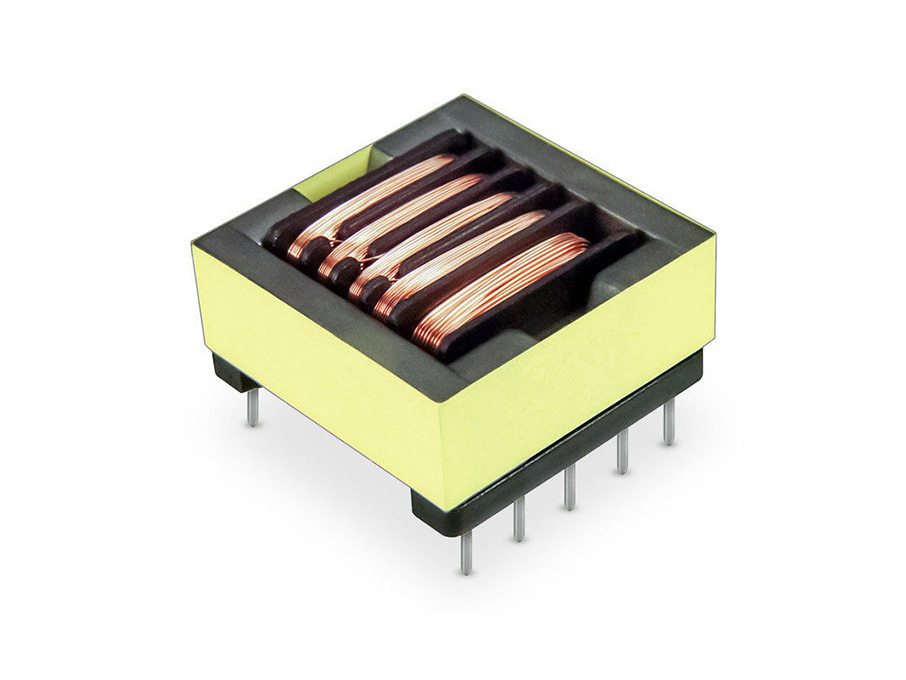

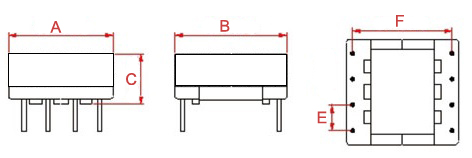

EFD15 TYPE 1

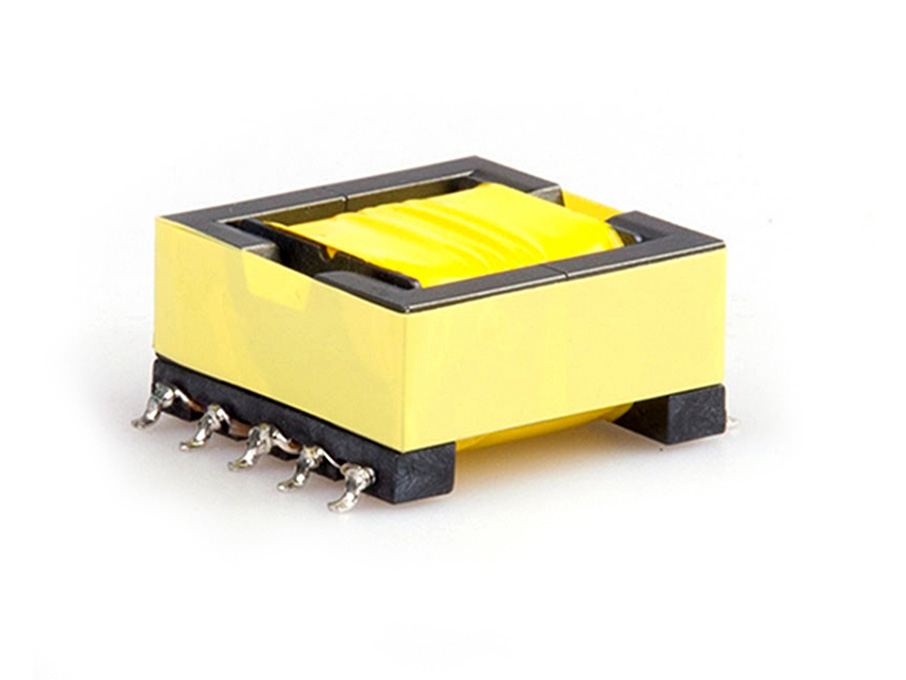

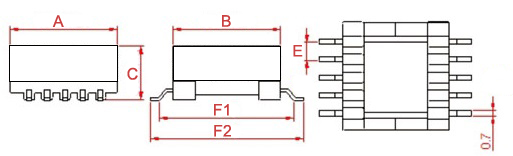

EFD15 TYPE 2
| Type | Structuretype | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin（mm） | Note | |||
| A | B | C | Pin | E | F1/F2 | ||||
| EFD15-01 | Horizontal | 16.0 | 16.0 | 8.0 | 4+4 | 3.7 | 13.8 | Φ0.6 | TYPE 1 |
| EFD15-02 | Horizontal | 16.0 | 18.0 | 8.0 | 5+5 | 2.5 | 17.0 | Φ0.7 | TYPE 1 |
| EFD15-03 | Horizontal | 16.0 | 16.0 | 8.5 | 5+5 | 2.5 | 18.8/21.5 | SMD0.7 | TYPE 2 |
| EFD15-04 | Horizontal | 16.0 | 16.0 | 8.5 | 6+6 | 2.5 | 18.8/21.5 | SMD0.7 | TYPE 2 |
