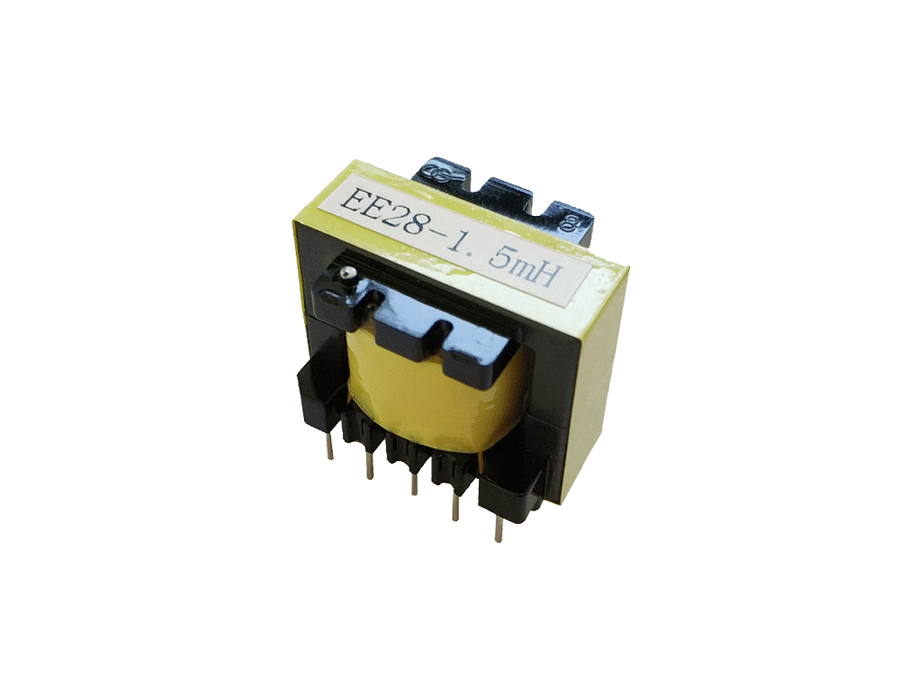

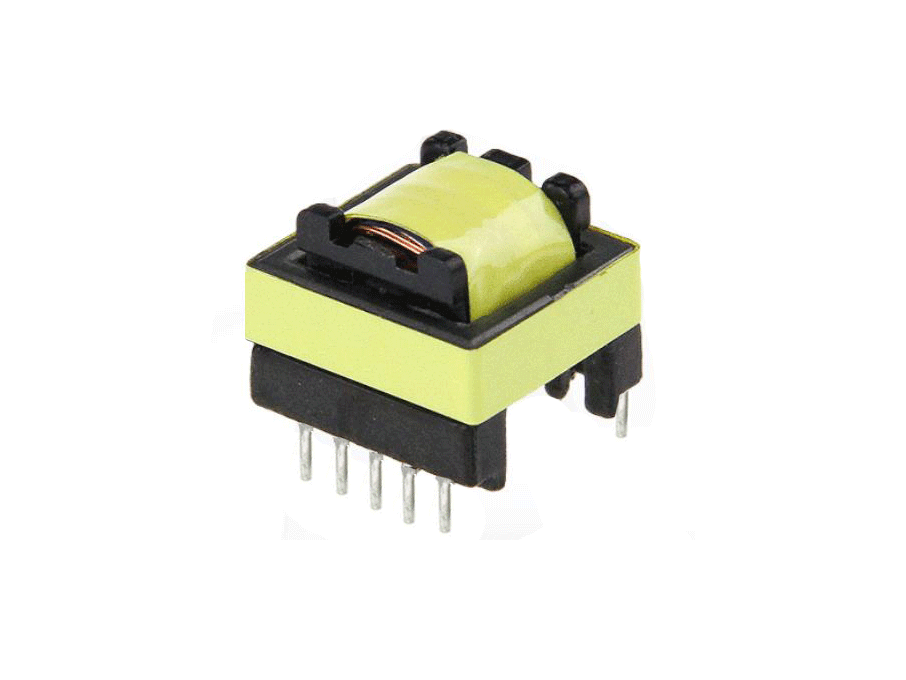

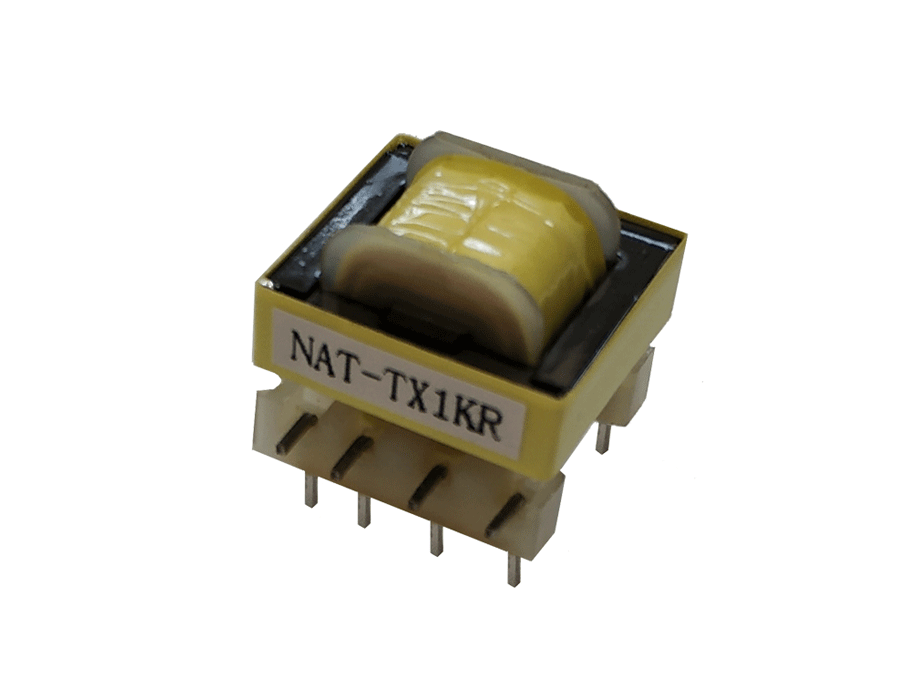

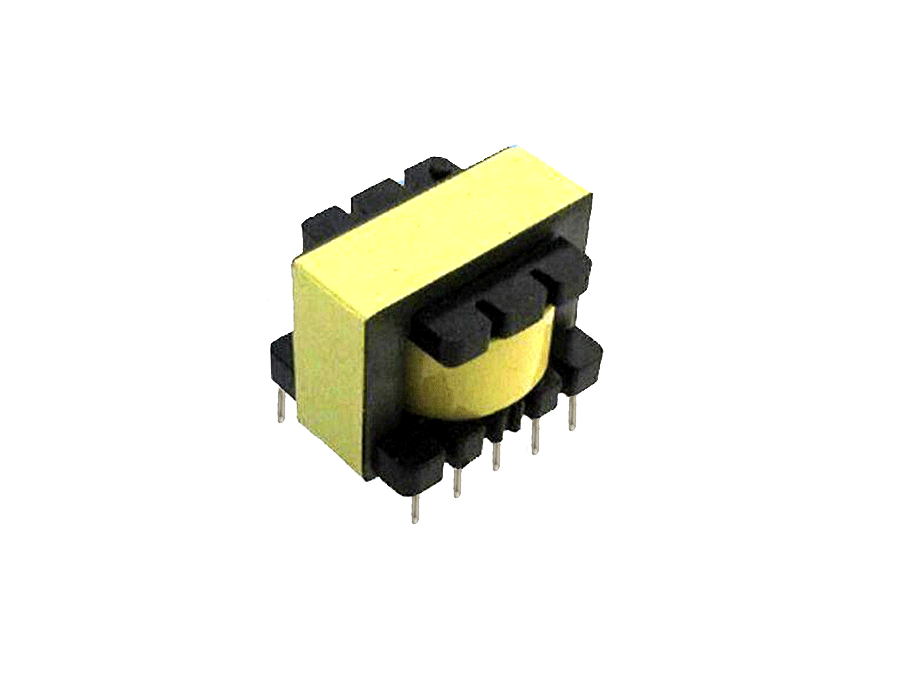

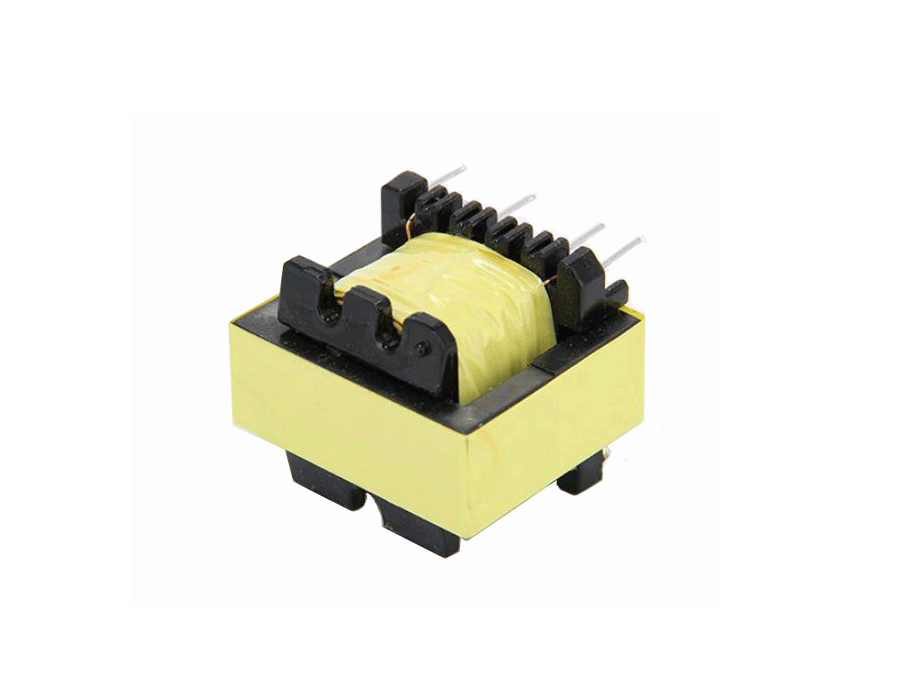

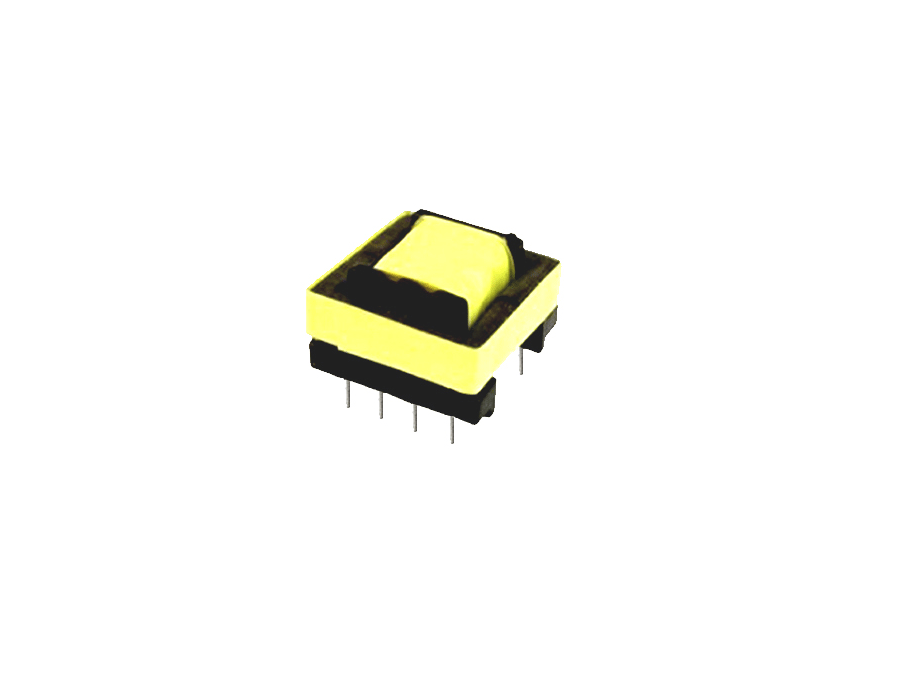

EE Type Transformer
EE Type Transformer is the standard type of transformer and it’s commonly used in many electronics products design. In Europe EE is more frequently used. It’s main application include Switching-mode power supply (SMPS), Switching AC-DC adapter, Electronics power board, and chargers.
The Low loss EE Type Power Transformer possesing of high permeabillity, high saturation flux density and low loss,especially about at 100 degree the power loss goes bottom.It's applied to Power transfer transformers, choke coils, communication standby transformer,LED driver,Lightening appliance,Communication equipment,Switching Power Supply,Main Power Transformer,LCD Power Supply,Main Power Transformer,Household appliances,Office equipment，Switching-mode power supply (SMPS), Switching AC-DC adapter, Electronics power board, and chargers.
EE Type High Power High Frequency Transformer is available in SMD and DIP package with current sensors. EE Transformer has a variety of other sizes and values to choose from. EE Type is the standard type of High Power High Frequency Transformer and it’s commonly used in many electronics products design. In Europe EE is more frequently used. High frequency transformer is power transformer which working frequency 10KHz ~ 500KHz. As per high and low working frequency, it can be divided into severate by: 10kHz- 50kHz、50kHz-100kHz、100kHz-500kHz、500kHz-1MHz、over 10MHz. And widely Power rate: < 5W, 5W - 10W, 10W - 20W, 20W - 50W, 50W - 100W, 100W - 200W, 200W - 500W, 500W - 1000W. It could be use as Flyback Transformer, Drive Transformer, Inverter Transformer, High Current Inductor.
EE transformer have a good magnetic, low consume, get high function frequency, and high counteract for the obstruction.
High Power High Frequency Transformer (20~500KHz)
High Power Output (1000W)
Good Heat Balance
Customized specifications are welcome. Small, medium and high quantity is available.
Switching power output and smoothing circuits.
Used as choke coil for high frequency SMPs.
Countermeasure against spike ripples.
EE transformer have a good magnetic, low consume, get high function frequency, and high counteract for the obstruction.
High Power High Frequency Transformer (20~500KHz)High Power Output (1000W)
Good Heat Balance
Customized specifications are welcome. Small, medium and high quantity is available.
Switching power output and smoothing circuits.
Used as choke coil for high frequency SMPs.
Countermeasure against spike ripples.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features Of EE Type Transformer
High Power High Frequency Transformer.
High frequency switching transformer.
Current sensors.
Wide variety of other sizes and values available.
Applications Of EE Type Transformer
computer equipment. Internet equipment. AC main power supply system. industrial control. telecom equipment.
EE Type Transformer High Frequency Transformer Manufacturer
The EE Type Current Transformer, is a type of “instrument transformer” that is designed to produce an alternating current in its secondary winding which is proportional to the current being measured in its primary. EE Type Current Transformers reduce high voltage currents to a much lower value and provide a convenient way of safely monitoring the actual electrical current flowing in an AC transmission line using a standard ammeter. The principal of operation of a basic current transformer is slightly different from that of an ordinary voltage transformer.
Unlike the voltage or power transformer looked at previously, the EE Type Current Transformer consists of only one or very few turns as its primary winding. This primary winding can be of either a single flat turn, a coil of heavy duty wire wrapped around the core or just a conductor or bus bar placed through a central hole as shown.
Due to this type of arrangement, the current transformer is often referred too as a “series transformer” as the primary winding, which never has more than a very few turns, is in series with the current carrying conductor supplying a load.
The secondary winding however, may have a large number of coil turns wound on a laminated core of low-loss magnetic material. This core has a large cross-sectional area so that the magnetic flux density created is low using much smaller cross-sectional area wire, depending upon how much the current must be stepped down as it tries to output a constant current, independent of the connected load.
