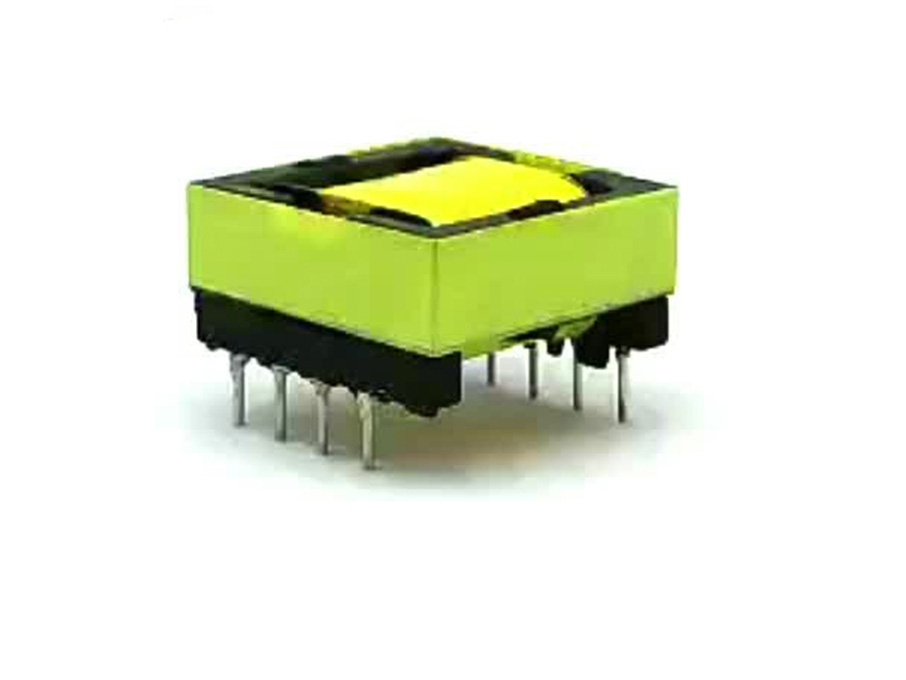

EFD20 Transformer
1. Working frequence: 10kHz-500KHz
2. Output power: 8 to 30 W
3. Working temperature: -40℃ to +125℃
4. Storage temperature: -25℃ to +85℃
5. Storage humidity: 30 to 95%
PRODUCT DESCRIPTION

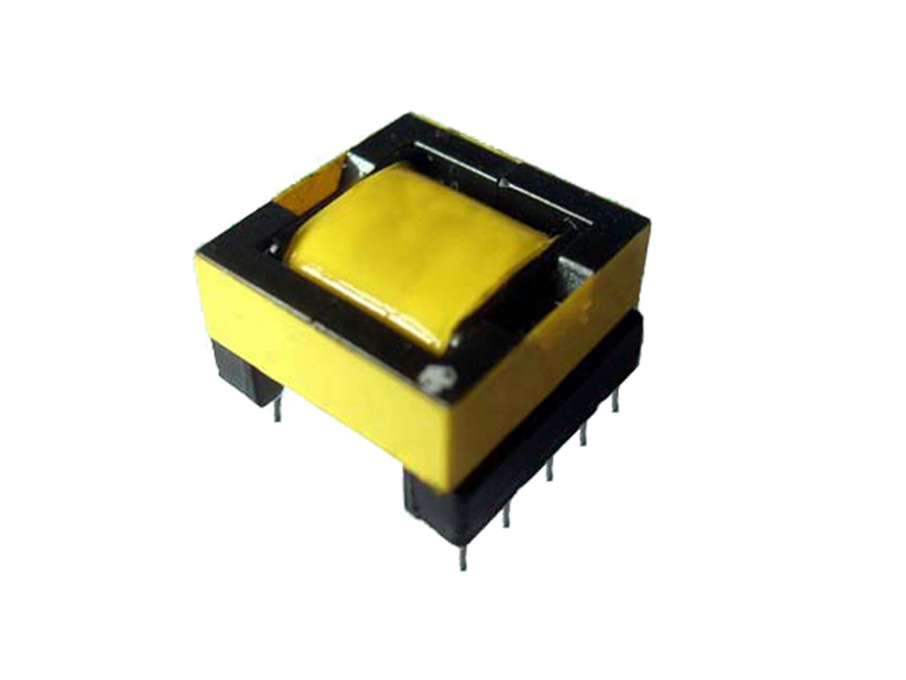

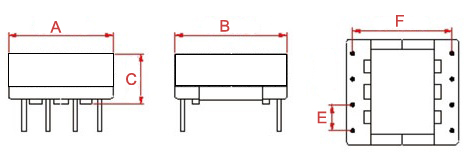

EFD20 TYPE 1

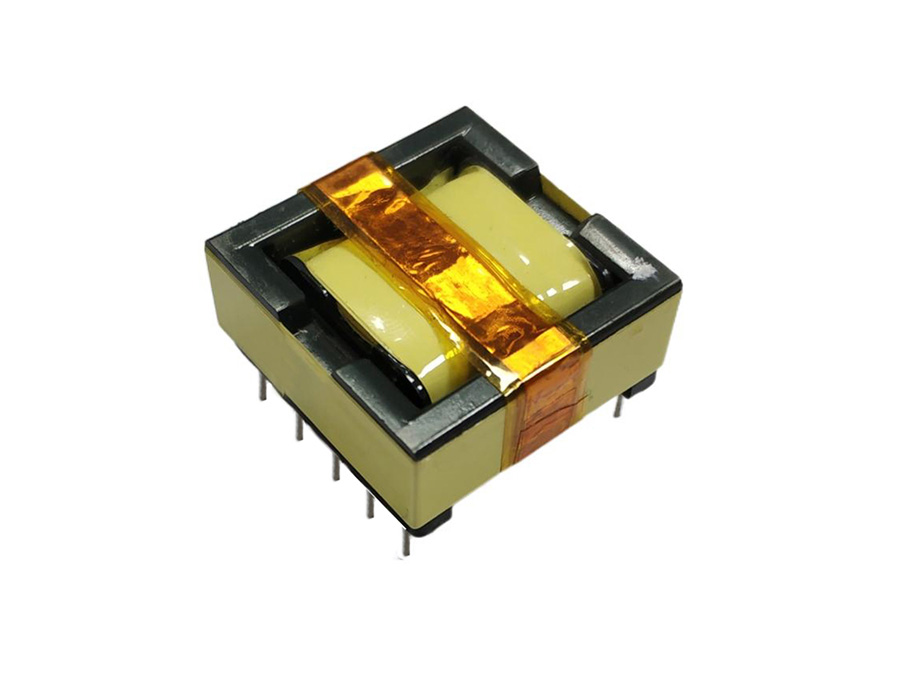

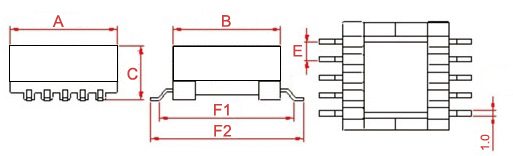

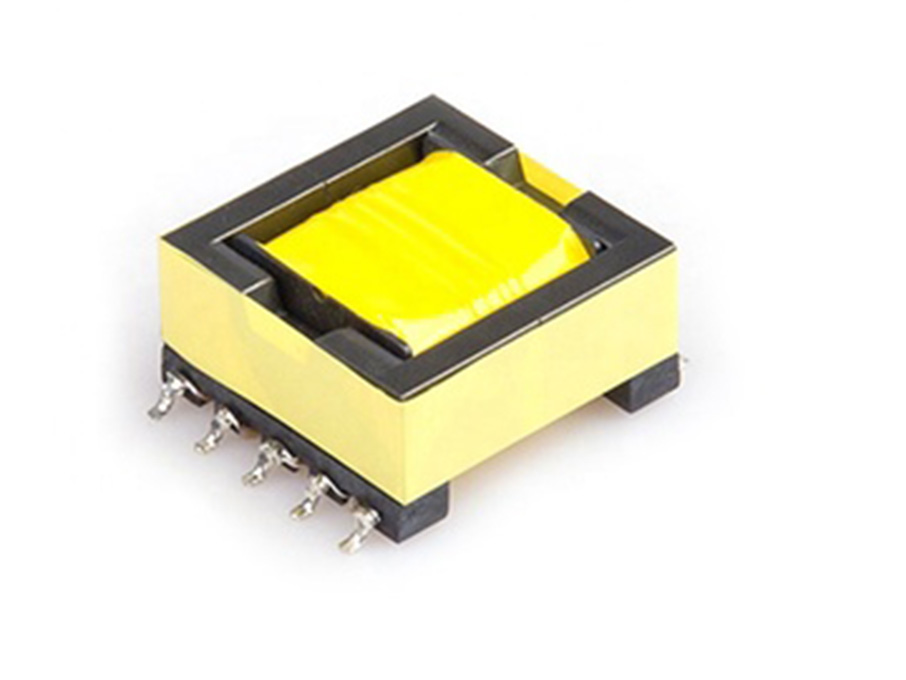

EFD20 TYPE 2
| Type | Structuretype | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin（mm） | Note | |||
| A | B | C | Pin | E | F1/F2 | ||||
| EFD20-01 | Horizontal | 21.5 | 21.5 | 13.0 | 4+4 | 5.0 | 17.5 | Φ0.6 | TYPE 1 |
| EFD20-02 | Horizontal | 21.5 | 21.5 | 13.0 | 5+5 | 3.75 | 17.0 | Φ0.6 | TYPE 1 |
| EFD20-03 | Horizontal | 21.5 | 21.5 | 13.0 | 4+4 | 5.0 | 17.5 | Φ0.6 | TYPE 1 |
| EFD20-04 | Horizontal | 21.5 | 21.5 | 11.0 | 5+5 | 3.76 | 23.1/25.1 | SMD1.0 | TYPE 2 |
| EFD20-05 | Horizontal | 21.5 | 21.5 | 11.0 | 4+4 | 5.08 | 29.2 | SMD1.0 | TYPE 2 |
| EFD20-06 | Horizontal | 21.5 | 21.5 | 11.0 | 6+6 | 3.0 | 28.6 | SMD1.0 | TYPE 2 |
