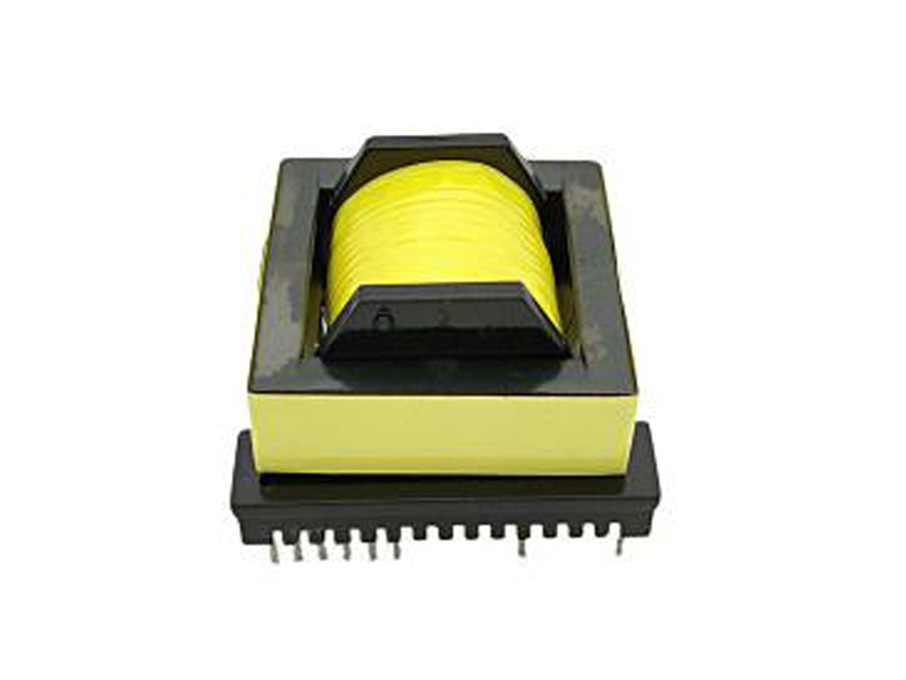

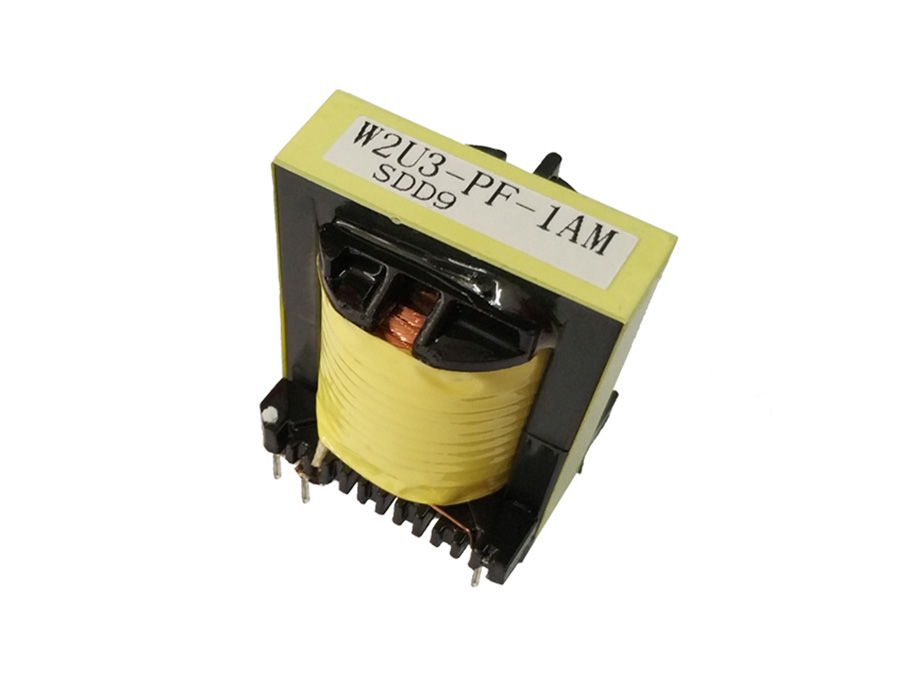

ER40 Isolated Electronic Transformer
1. Working frequence: 40kHz-500KHz
2. Output power: 120 to 600 W
3. Working temperature: -40℃ to +125℃
4. Storage temperature: -25℃ to +85℃
5. Storage humidity: 30 to 95%
PRODUCT DESCRIPTION

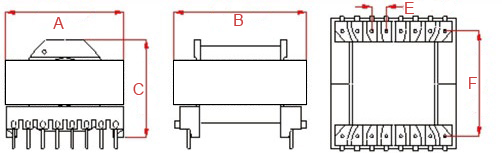

ER40 TYPE 1

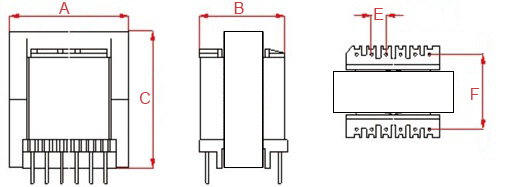

ER40 TYPE 2
| Type | Structuretype | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin（mm） | Note | |||
| A | B | C | Pin | E | F | ||||
| EC40/ER40-01 | Horizontal | 41.0 | 47.0 | 34.0 | 8+8 | 5.0 | 35.0 | Φ1.0 | TYPE 1 |
| EC40/ER40-02 | Horizontal | 60.0 | 41.0 | 39.0 | 19+19 | 3.0 | 35.0 | Φ0.8 | TYPE 1 |
| EC40/ER40-03 | Horizontal | 41.5 | 45.0 | 29.0 | 8+8 | 5.0 | 35.2 | Φ1.0 | TYPE 1 |
| EC40/ER40-04 | Vertical | 41.5 | 31.0 | 47.0 | 6+6 | 5.0 | 25.0 | Φ1.0 | TYPE 2 |
| EC40/ER40-05 | Vertical | 41.5 | 31.0 | 47.0 | 7+7 | 5.0 | 25.0 | Φ1.0 | TYPE 2 |
| EC40/ER40-06 | Vertical | 41.5 | 31.0 | 47.0 | 8+8 | 5.0 | 25.0 | Φ1.0 | TYPE 2 |
