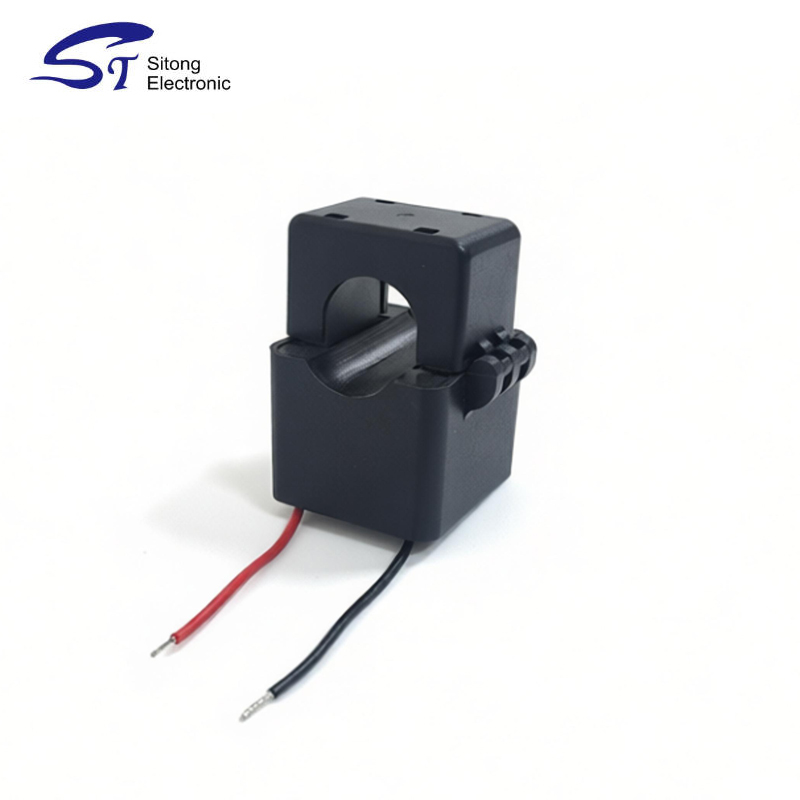

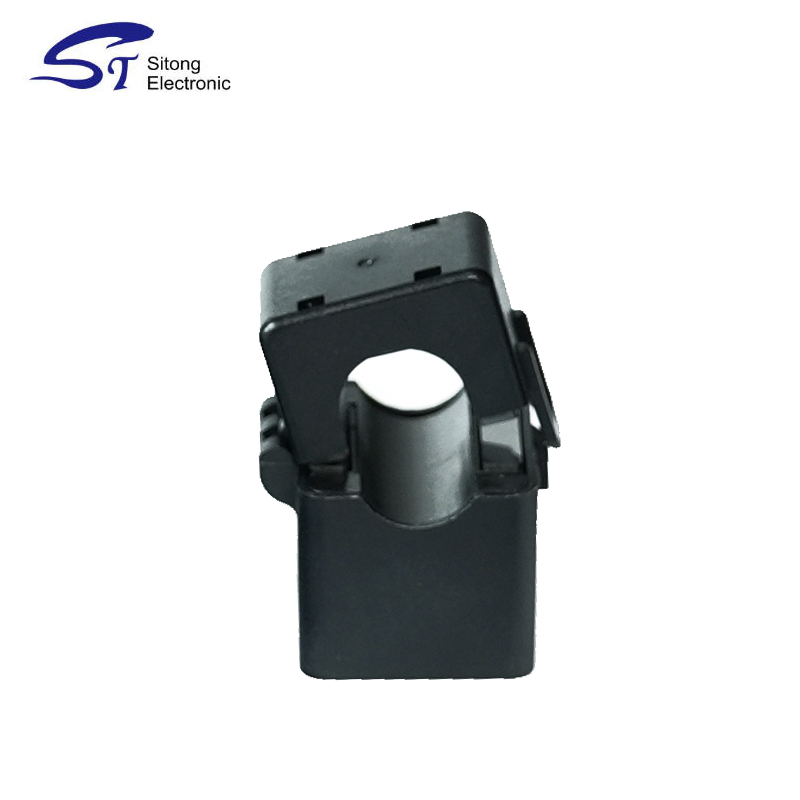

STCT-FK series switchable current transformer

  • Features

The segmented core design results in low core loss and high precision.

No need to disconnect the busbar, easy to install, and does not affect the customer's normal power supply;

It has an exquisite appearance, small size, and light weight;

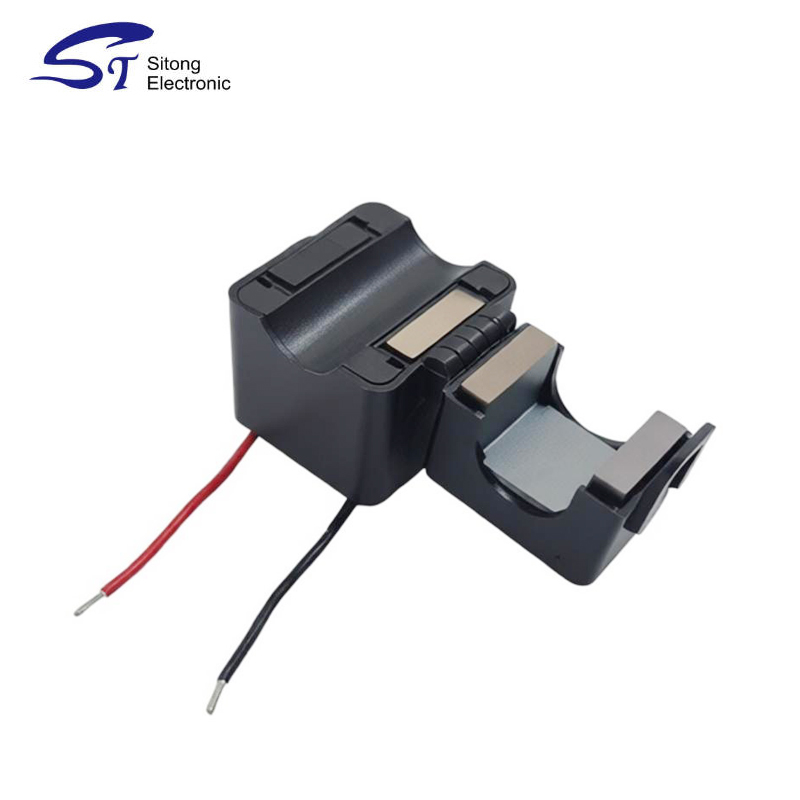

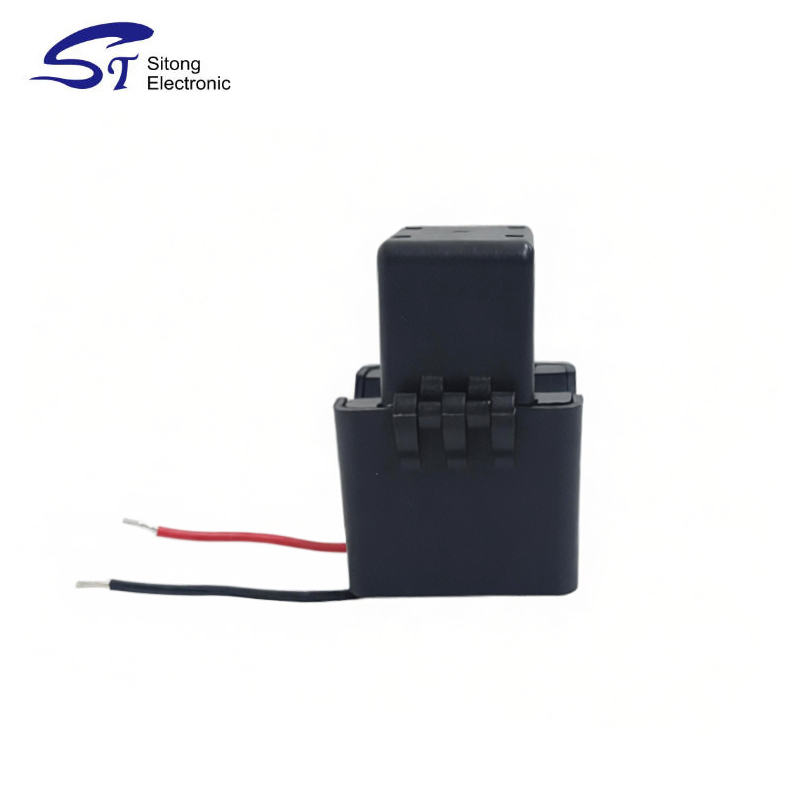

The snap-lock opening and closing mechanism makes it easy to open and close.

  • Application

General measurement and protection in functional power systems, particularly in highly mobile, confined, or uninterrupted power systems.

Applications: Electrical instruments and meters, electronic multi-function energy meters and field calibration instruments, instrument measurement and protection.Protect.

  • Electrical Characteristics

Maximum voltage of the equipment: 720V

Power frequency withstand voltage: 4000V 50HZ/1min (1mA)

Primary rated current: 0-1000A

Secondary rated current/voltage: 5A/1A/mA/mV

Frequency: 50/60Hz

  • Characteristic:

Fully compliant with RoHS, CE and REACH requirements.

  • Size:


Unit of measurement: (mm)

Dimensional tolerance: 5mm (unless otherwise specified)

Lead tolerance: 20mm

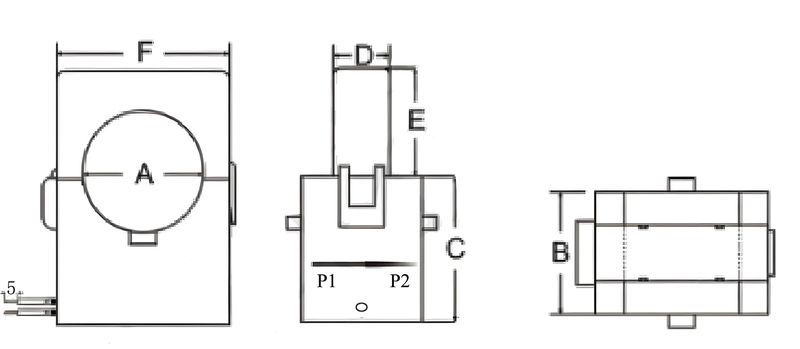

External dimensions Overall Dimension drawing

Model

A(mm)

B(mm)

C(mm)

D(mrn)

E(mm)

F(mm)

KCT-FK10

10.0

26.0

23.5

14.0

17.0

23.0

KCT-FK16

16.0

32.0

26.0

19.0

19.0

30.0

KCT-FK24

24.0

36.5

41.0

180.

29.0

44.0

KCT-FK36

36.0

40.0

48.5

21.5

37.0

55.5

KCT-FK48

480.

46.0

54.5

210.

42.0

66.0




Electrical Properties(At 25C)

Specifications and Models

Rated primary current

Rated secondary current

load(VO

0.5Sclass

0.5class

1class

Secondary Rated Current 5A

KCT-FK24

100

5A/1A

/

/

05

150

5A/1A

/

/

05

200

5A/1A

/

/

05

KCT-FK36

200

5A/1A

/

2.5

5

250

5A/1A

/

2.5

5

300

5A/1A

0.5

2.5

5

KCT-FK36

400

5A/1A

0.5

2.5

5

500

5A/1A

0.5

2.5

5

600

5A/1A

0.5

2.5

5

KCT-FK48

600

5A/1A

2.5

5

10

800

5A/1A

2.5

5

10

1000

5A/1A

2.5

5

10

Secondary rated current100mAclass

Specifications and Models

Current range

Maximum continuous electric shock

load resistor

Accuracy level

KCT-FK10

0~60A

75A

RL=10Q

1class

KCT-FK16

0~100A

120A

RL=10Q

0.5class

KCT-FK24

0~200A

250A

RL=10Q

0.5class

KCT-FK36

0~500A

600A

RL=10Q

0.5class

KCT-FK48

0~1000A

1200A

RL=10Q

0.2class


Note:

1. Pay attention to the load connected to the transformer secondary. Exceeding the rated load capacity may result in loss of accuracy or saturation.

2. If the above table is not suitable for your use, our company can customize products according to your technical and structural requirements.

Split-core current transformers (CTs) are a special type of current transformer. Their core feature is a hinged or separable iron core that can be opened and closed, allowing installation without disconnecting the conductor being measured. This greatly facilitates online monitoring and retrofit projects.
I. Core Structure & Working Principle
Structural Feature: The iron core consists of two parts that can open and close like pliers. When closed, they form a complete magnetic circuit. The primary conductor is the measured wire itself, passing through the center of the core.
Working Principle: Same as conventional CTs, based on electromagnetic induction. When the closed core encircles a current-carrying conductor, the alternating current generates an alternating magnetic flux in the core. This induces a proportional secondary current (typically 5A or 1A) or voltage signal in the secondary winding for use by measurement, protection, or monitoring devices.
II. Key Performance Indicators Analysis
Split-core CT performance is generally slightly inferior to equivalent enclosed CTs. The following parameters require close attention:
Accuracy Class
Definition: The percentage measurement error under specified conditions (e.g., ±1%, ±0.5%).
Characteristics: Accuracy of split-core CTs is typically lower than enclosed types. Common classes are Class 1, Class 0.5, with high-precision versions reaching Class 0.2. Accuracy is significantly affected by the air gap at the split, installation consistency (whether fully closed), and conductor position (centering).
Aperture Size
Definition: The maximum conductor diameter the core can accommodate when open. This is a critical selection parameter and must be larger than the outer diameter of the measured cable or busbar.
Rated Primary Current & Measurement Range
Definition: The range of measured current within which it operates correctly. Typically specifies minimum measurable current and rated primary current. Currents too low may cause high error due to low core permeability, while currents too high may cause saturation.
Phase Error
Definition: The phase difference between the primary and secondary currents (usually expressed in 'minutes' or 'degrees').
Characteristics: Crucial for energy metering and power measurement. Phase error for split-core CTs is typically larger than for enclosed types and is influenced by installation.
Burden Capacity & Rated Output
Definition: The maximum load (VA value) the secondary side can drive, or the standard output signal (e.g., 1V, 5A) while maintaining accuracy.
Characteristics: Excessive burden leads to accuracy degradation. Newer split-core CTs often output small voltage signals (e.g., 333mV for full scale) directly to smart meters, requiring lower burden capacity.
Linearity & Saturation Characteristics
Definition: The ability to maintain a proportional relationship between output and input over a wide range. Saturation current is the critical point where the core magnetically saturates and loses linearity.
Characteristics: The split core may cause earlier saturation, resulting in a relatively narrower dynamic range. Overload capability (e.g., withstanding several times rated current briefly without damage) needs attention.
Interference Immunity & Shielding
Characteristics: Due to the split structure, immunity to external magnetic fields is weaker. Nearby current-carrying conductors can cause measurement errors. High-quality split-core CTs employ high-permeability materials, magnetic shielding, or electronic compensation to reduce interference.
Installation Repeatability
Definition: The consistency of measurement results after multiple open/close installation cycles.
Key Impact: This is one of the most important performance aspects of a split-core CT. It depends on the precision and stability of the core locking mechanism (spring, screw, hinge). Low-quality products may yield different readings with each installation.
III. Main Advantages
Easy Installation: No power shutdown or conductor cutting required, significantly saving installation time and cost, especially for retrofit projects.
Safe & Reliable: Enables live installation, avoiding risks and economic losses associated with power outages.
Versatile & Flexible: One split-core CT can be used for measurement points at multiple locations, offering high flexibility.
Diverse Sizes: Available to fit various dimensions, from thin cables to large busbars.
IV. Main Disadvantages & Challenges
Relatively Lower Accuracy: Affected by the split gap, installation position, and external magnetic fields, accuracy and stability are typically lower than equivalent enclosed CTs.
Stability Vulnerable to Influence: Vibration, temperature changes, and repeated core opening/closing may cause minor changes in magnetic properties, affecting long-term stability.
Higher Cost: To achieve comparable performance, design and material requirements (e.g., high permeability, low remanence core) are higher, leading to greater cost than enclosed CTs.
Susceptible to External Magnetic Interference: The structure inherently provides less perfect magnetic shielding than enclosed CTs.
V. Selection & Usage Guidelines
Define Requirements Clearly: First determine if it's for rough monitoring or precise metering to select the appropriate accuracy class.
Match the Size: Ensure the aperture size is larger than the cable diameter (including insulation).
Focus on Installation: Choose a product with a reliable locking mechanism. During installation, ensure the core is clean, fully closed, and the conductor is centered as much as possible.
Consider the Environment: Avoid installation near strong magnetic field sources (e.g., high-current busbars, motors). Note the operating temperature range.
Plan for the Future: Include some current margin to accommodate future load growth.


Core Characteristics of Split-Core Current Transformers (CTs):
Core Characteristics (Advantages and Limitations)
I. Core Advantages (Why They Are Widely Adopted)
  1. Easy Installation, No Power Outage Required
    • Key Feature: The CT opens like pliers and clamps onto the conductor without disconnecting the primary circuit. This is the fundamental reason for its existence, making it particularly suitable for retrofitting, adding measurements, or temporary monitoring on operational lines, thereby avoiding losses from production stoppages or power outages.



  2. Safe and Efficient
    • Enables live-line operation, significantly improving operational safety. Reduces the need for complex procedures such as power shutdowns, voltage verification, and grounding, while enabling extremely fast installation.



  3. Versatile and Flexible
    • A single unit can be used for multiple measurement points, offering strong versatility. Available in various aperture sizes to accommodate different needs, from thin cables to thick busbars.



  4. Modular and Integrated Design
    • Modern split-core CTs are often integrated with sensors and digital circuits, directly outputting standardized signals (e.g., RS-485, 4-20mA) for easy connection to smart meters, energy management systems, and IoT platforms.



II. Inherent Limitations (Key Considerations During Use)
  1. Relatively Lower Accuracy
    • Due to the physical air gap in the magnetic circuit, the accuracy, linearity, and phase error of split-core CTs are typically lower than those of enclosed CTs of the same class. Performance is easily affected by installation position, gap size, and whether the conductor is centered.



  2. Stability Vulnerable to External Factors
    • Weaker Anti-Interference Capability: The split-core structure makes it more susceptible to interference from external stray magnetic fields.


    • Repeatability Depends on Mechanical Structure: Wear, contamination, or misalignment of hinges or locking mechanisms after repeated opening and closing can lead to inconsistent measurements. Reliable locking mechanisms are essential.



  3. Limited Dynamic Range
    • For the same physical size, split-core CTs may have a lower saturation current, making them prone to saturation when measuring high currents or inrush currents (e.g., motor startup), leading to distorted output.



  4. Cost vs. Size Trade-off
    • Achieving better performance often requires higher-quality core materials (e.g., nanocrystalline alloys) and compensation technologies. As a result, split-core CTs are typically more expensive than enclosed CTs of comparable performance.


The application of split-core current transformers is entirely determined by their core features—the convenience of installation without power interruption and the flexibility for online monitoring. They are the preferred, and often the only, choice in many scenarios where traditional enclosed CTs are difficult to implement or cost-prohibitive.
I. Core Application Areas
  1. Power System Retrofitting and Smart Upgrades
    This is the most classic and widely used application scenario.


  • Retrofitting of Old Distribution Cabinets/Enclosures: Adding current monitoring functionality to existing operational distribution systems without replacing enclosures or requiring power outages.


  • Bus Duct Monitoring: Direct installation on densely packed bus ducts to monitor the load conditions of various sections.


  • Circuit Expansion Monitoring: Assessing the potential for expanding existing circuits by monitoring current data in real time.


  • Smart Grid User Side: Conveniently adding monitoring points at the endpoints of distribution networks, such as junction boxes or meter boxes.


  1. Energy Management and Efficiency Analysis
    • Sub-metering: Subdividing energy consumption for different branches, such as air conditioning, lighting, power systems, and IT equipment, in large buildings like factories, shopping malls, hospitals, and data centers. This forms the foundation for energy audits and energy-saving retrofits.


    • Equipment-Level Monitoring: Independently monitoring the electrical consumption of critical energy-using equipment (e.g., large pumps, fans, air compressors, machine tools) to analyze their operational efficiency and condition.


    • Tenant Energy Consumption Metering: Installing independent metering devices for different tenants in commercial complexes or leased industrial spaces.



  2. Electrical Safety and Condition Monitoring
    • Leakage/Insulation Monitoring: Used in conjunction with residual current transformers (which are themselves a type of split-core CT) to monitor leakage currents in circuits and prevent electrical fires.


    • Correlated Monitoring of Cable Joint Temperature and Current: Integrating temperature measurement functions to simultaneously monitor current and joint temperature, assessing overheating risks.


    • Load Imbalance Monitoring: Quickly detecting imbalances in phase currents in three-phase systems to prevent equipment damage and increased energy consumption due to imbalances.



  3. Fault Diagnosis and Temporary Measurements
    • Maintenance and Troubleshooting: Used by electrical personnel for temporary measurements of branch circuit currents to identify overloaded or abnormal circuits during fault diagnosis.


    • Equipment Commissioning: Monitoring the starting and operating currents of newly installed electrical equipment during commissioning.


    • Preliminary Power Quality Analysis: Conducting on-site testing of parameters such as harmonics and flicker in conjunction with portable power quality analyzers.



  4. New Energy and Emerging Fields
    • Distributed Photovoltaic Systems: Monitoring the output current of PV arrays and currents in combiner boxes for easy installation and maintenance.


    • Electric Vehicle Charging Stations: Monitoring the input and output currents of charging stations for billing, load management, and orderly charging control.


    • Energy Storage Systems: Monitoring battery charging and discharging currents.


    • Microgrids: Facilitating the deployment of monitoring points at various nodes within flexible microgrid architectures.



  5. Industrial Automation and Process Control
    • Motor and Drive Control: Serving as feedback components to monitor motor currents for overload protection, process control, or predictive maintenance.


    • Power Supply Monitoring: Monitoring the input and output currents of critical DC panels and UPS systems.



II. Key Considerations for Application Selection
In practical applications, selecting the appropriate product requires careful consideration based on specific scenarios:
  • Accuracy Selection:
    • Class A (Monitoring, Protection): Accuracy of Class 1 or Class 0.5, suitable for load monitoring, overload alarms, and energy management dashboards.


    • Class S (Metering, Energy Efficiency Analysis): Accuracy of Class 0.5, Class 0.2, or higher, often featuring temperature and frequency compensation, for applications requiring precise billing or in-depth energy efficiency analysis.



  • Output Signal Selection:
    • Traditional Output: Directly outputs 5A or 1A current signals for connection to traditional analog meters or relays.


    • Modern Output: Outputs low-voltage signals or integrates digital modules for direct connection to smart meters, data collectors, or IoT gateways.



  • Installation Environment Considerations:
    • Size: Ensure the aperture size is larger than the outer diameter of the cable or busbar.


    • Environment: Select an appropriate protection rating (IP rating). For outdoor or humid environments, choose models with IP65 or higher.


    • Electromagnetic Environment: In areas with strong interference, opt for models with magnetic shielding or digital compensation for high immunity to interference.
