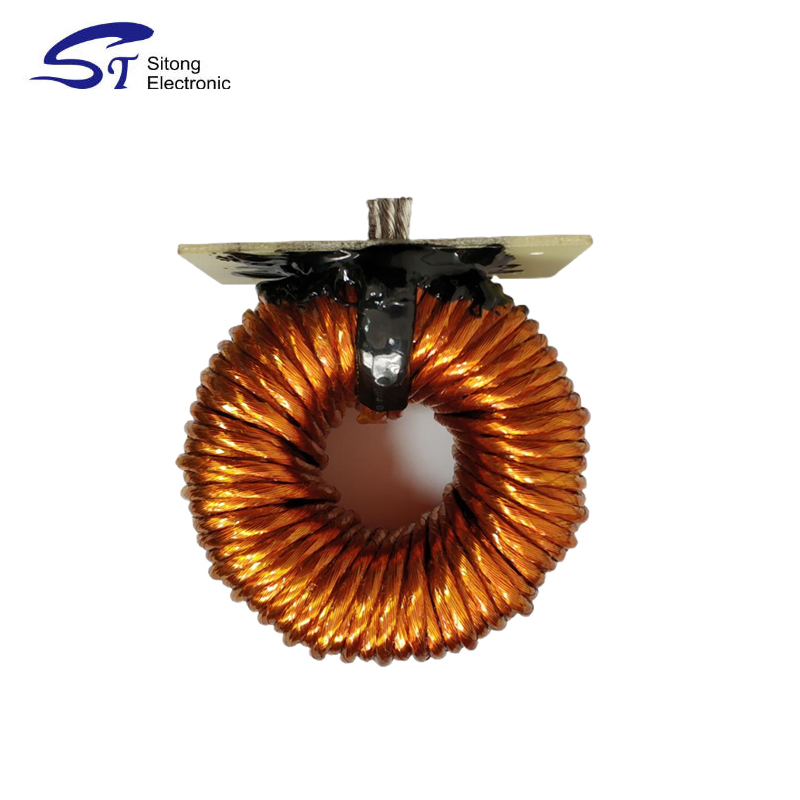

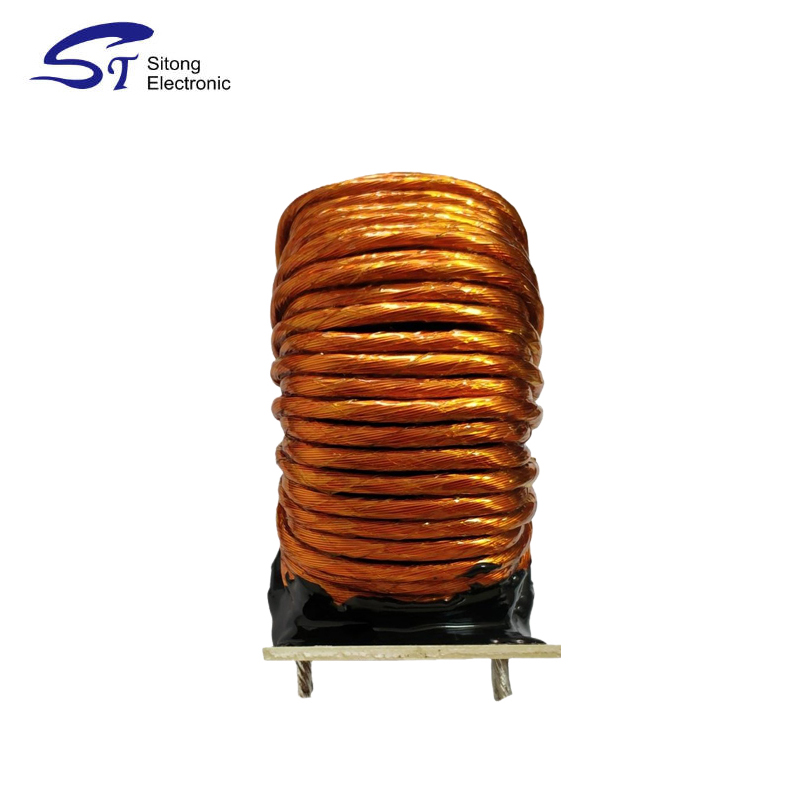

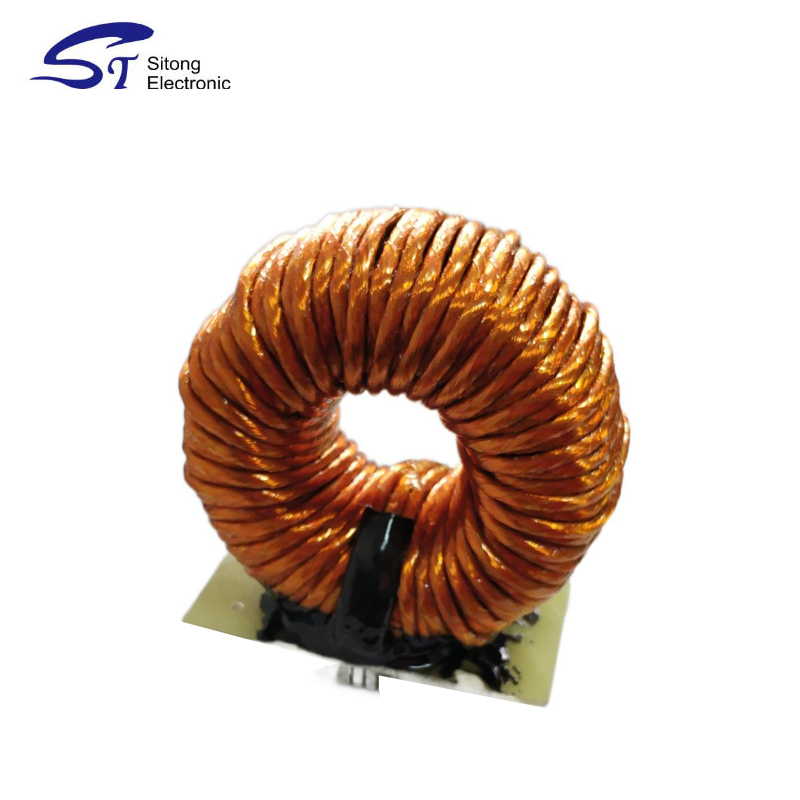

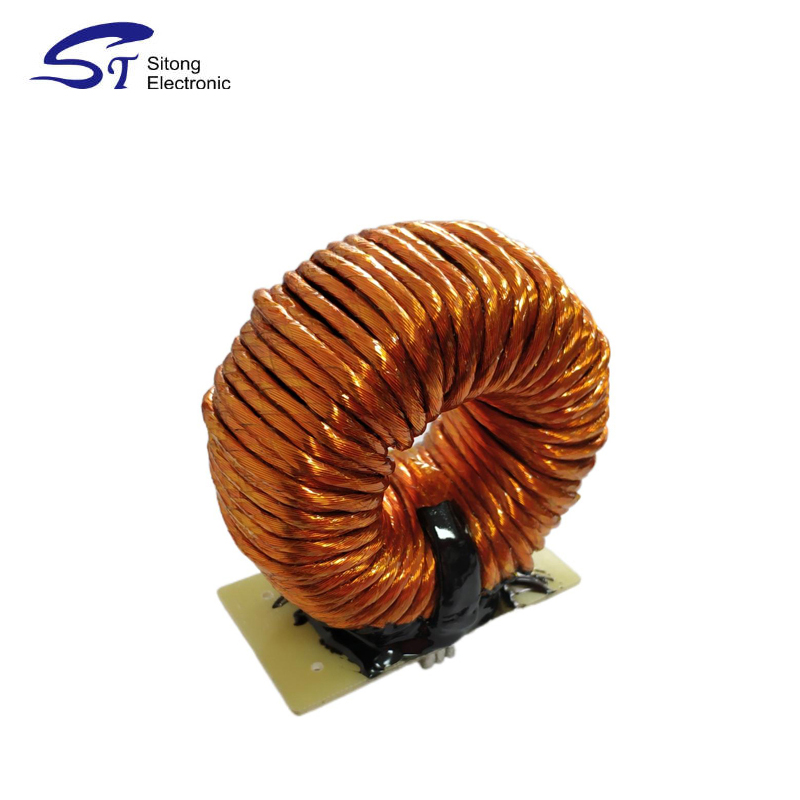

Amorphous / Nanocrystalline Filter Inductor :This is a broader category, including toroidal magnetic cores made of materials such as amorphous and nanocrystalline. They can also be used with an air gap.* Advantages: The saturation magnetic flux density is extremely high, and the high - frequency loss can be made very low. * Typical applications:It is mainly used in high - frequency, high - current situations where ultimate efficiency is pursued, such as power inductors in high - end server power supplies and communication power supplies. The cost is very high.
Performance of Amorphous/Nanocrystalline Filter Inductors These inductors are designed to address the contradictions inherent in traditional materials, with detailed performance characteristics as follows: They are manufactured through a special ultra-rapid cooling process (quenching). When used for filtering or power inductance, they typically take the form of toroidal cores (which can be gapped).
I. Core Material Characteristics and Advantages1. Extremely High Saturation Flux Density
Typical Values: Amorphous alloys: Bsat ≈ 1.5–1.6 T; Nanocrystalline alloys: Bsat ≈ 1.2–1.3 T. Both are significantly higher than ferrites (~0.5 T) and Sendust (~1.05 T), and comparable to or higher than the best iron powder cores.
Significance: This is one of their fundamental advantages, enabling them to handle larger currents or store more energy at the same volume. It is the foundation for high power density (miniaturization, high-power) designs.
2. Extremely Wide Operating Frequency Range and Ultra-Low High-Frequency Losses
Mechanism: The highly uniform material structure and extremely high resistivity (far exceeding that of ferrites) maximize suppression of high-frequency eddy current losses.
Performance: Their losses remain exceptionally low across an extremely wide frequency range, from power frequencies to several hundred kHz (even MHz). Their high-frequency loss performance comprehensively surpasses all powder cores and is comparable to or better than high-end Mn-Zn ferrites.
3. Extremely High Permeability
Particularly for nanocrystalline alloys, their initial permeability (μi) can reach 20,000 to over 100,000, far exceeding that of Mn-Zn ferrites (~3,000–15,000).
Significance: High permeability means that for the same inductance requirement, the number of coil turns is significantly reduced, thereby lowering copper losses and volume. This is another key factor in achieving high efficiency.
4. Outstanding Temperature Stability
Their magnetic properties (e.g., permeability, losses) exhibit minimal variation across a wide temperature range from –55°C to +150°C. Their Curie temperature is very high (>500°C), fundamentally preventing high-temperature failure.
II. Core Performance Characteristics as Filter/Power Inductors (After Gapping)When amorphous/nanocrystalline toroids are gapped for use as single-wire filter/power inductors, their performance characteristics are as follows: 1. Remarkable Comprehensive Performance in Terms of "Strength-to-Weight Ratio"
Highest Energy Handling Density: Combining "high Bsat" (strong anti-saturation capability) with "high μ and low losses" enables the highest inductance, maximum current handling capability, and lowest overall losses per unit volume and weight. This is why they are referred to as the "king of high performance."
2. Ultra-High Efficiency and Extremely Low Temperature Rise
Due to extremely low core losses and reduced copper losses from fewer turns, inductors made from these materials exhibit significantly lower overall losses and temperature rise under high-temperature, high-frequency, and high-current conditions compared to Sendust and iron powder core inductors.
This directly translates to improved system efficiency, offering unparalleled advantages in MHz-level high-frequency switching applications.
3. Excellent DC Bias Characteristics (After Optimized Design)
Although high-permeability materials are sensitive to DC bias, precise design and processing of the air gap allow their DC bias characteristics to be "tailored," much like with ferrites.
The resulting inductance-current (L-I) curve can be designed to be either steep or gentle to meet different application needs (e.g., high-precision constant current or overload resistance).
III. Performance Limitations and Challenges1. Extremely High Cost
This is their most notable drawback. Raw materials (containing cobalt, nickel, etc.) and complex manufacturing processes (quenching, annealing) result in costs several times higher than ferrites and over ten times higher than iron powder cores.
2. Material Brittleness and Processing Difficulties
Amorphous/nanocrystalline ribbons are thin and brittle, and the cores have low mechanical strength, making them susceptible to severe impact or pressure.
High Difficulty in Gapping: Grinding air gaps is highly prone to causing core breakage, leading to low yield rates and further increasing costs.
3. Magnetostriction and Potential Noise
Detailed Explanation of the Core Characteristics of Amorphous/Nanocrystalline Filter Inductors I. Exceptional Electrical Performance Characteristics1. Extremely High Power Handling Capability and Energy Density
Root Cause: Ultra-high saturation flux density (Bsat: Amorphous ~1.6 T, Nanocrystalline ~1.3 T).
Performance: For the same volume, it can withstand the highest direct current or store the most magnetic energy. This is the most critical feature for achieving miniaturization and high power (high power density) in equipment.
2. Ultra-Low Loss Characteristics Across an Extremely Wide Frequency Band
Root Cause: The material structure is uniform with extremely high resistivity, fundamentally suppressing various types of losses.
Performance: Core losses remain extremely low across an exceptionally wide frequency range, from power frequency to the MHz level. This results in minimal self-temperature rise during high-frequency, high-current operation, with efficiency far surpassing that of powder core inductors.
3. Extremely High Permeability and Flexibility4. Exceptional Temperature Stability and Reliability
Root Cause: High Curie temperature (>500°C) and excellent wide-temperature characteristics.
Performance: Within environments ranging from -55°C to +150°C or even higher, magnetic properties (inductance, losses) exhibit minimal variation, ensuring stable and reliable circuit operation under all working conditions and a long service life.
II. Physical and Reliability Characteristics5. Material Brittleness and Mechanical Strength Challenges
Amorphous/nanocrystalline ribbons are thin, hard, and brittle, making the cores susceptible to impact and mechanical stress.
The air gap fabrication process is complex: Grinding air gaps is prone to causing cracks, resulting in low yield rates and stringent process requirements.
6. Potential Magnetostriction Noise
Some amorphous materials exhibit magnetostriction, which may generate audible noise under specific operating conditions (e.g., high flux density, specific frequencies). Low-noise formulation materials must be selected to address this issue.
Core Application Areas of Composite Alloy Magnetic Core Filter Inductors Due to their cost and performance positioning, their applications are primarily concentrated in the following fields, which are relatively price-insensitive but extremely demanding in terms of technical specifications: I. High-End Computing and Data CentersThis is currently the fastest-growing market for nanocrystalline inductors and the area where their performance advantages are most fully realized. II. New Energy and Electric VehiclesIn this field, improving efficiency directly translates to increased range or power generation, offering significant system-level benefits. III. High-End Industrial and Communication Power SuppliesIV. Special Equipment and AerospaceV. Precision Medical and Scientific Research Equipment |
