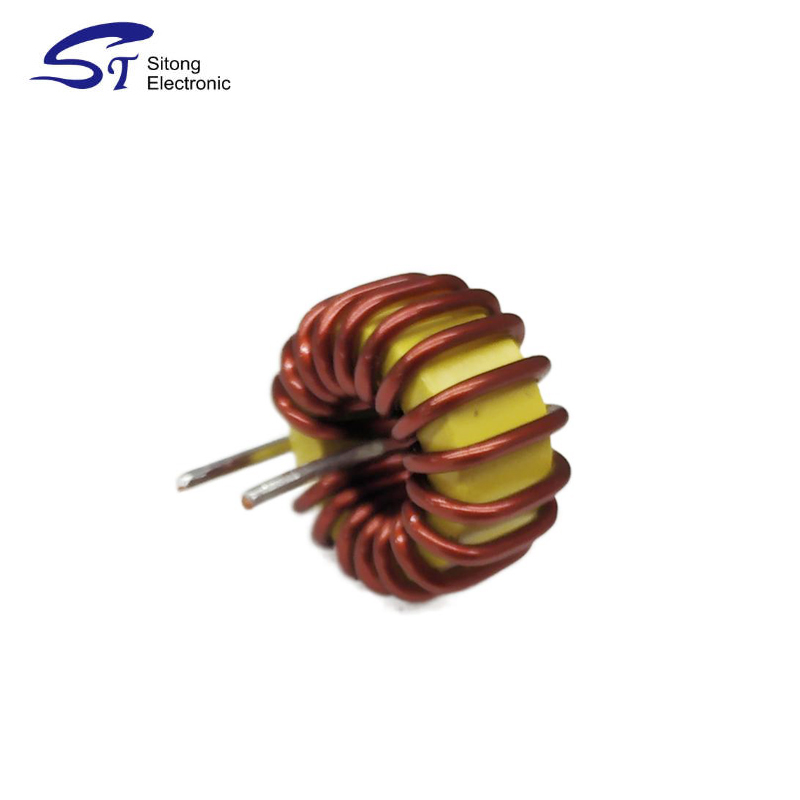

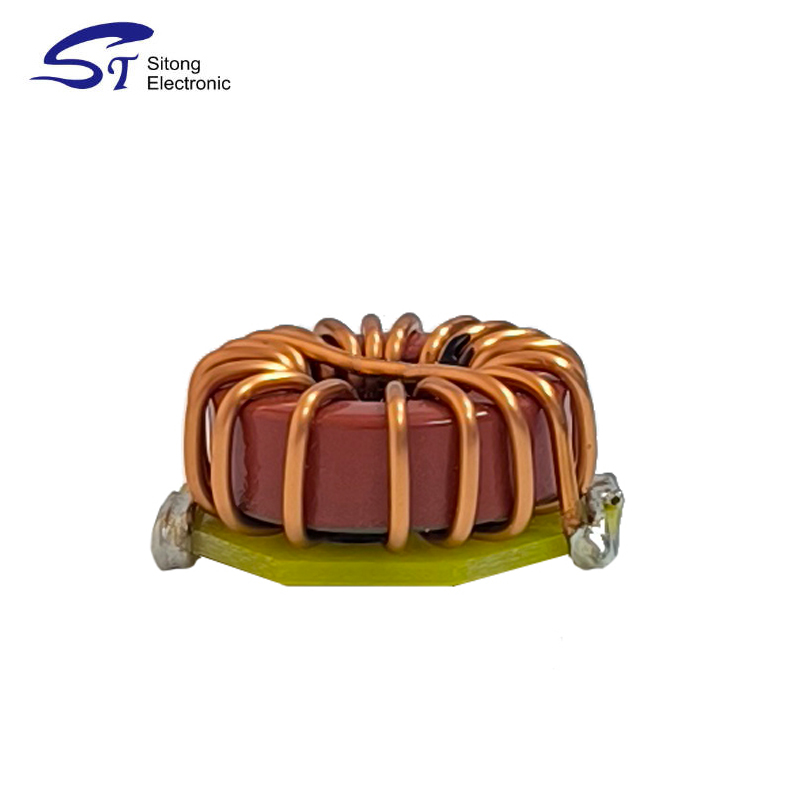

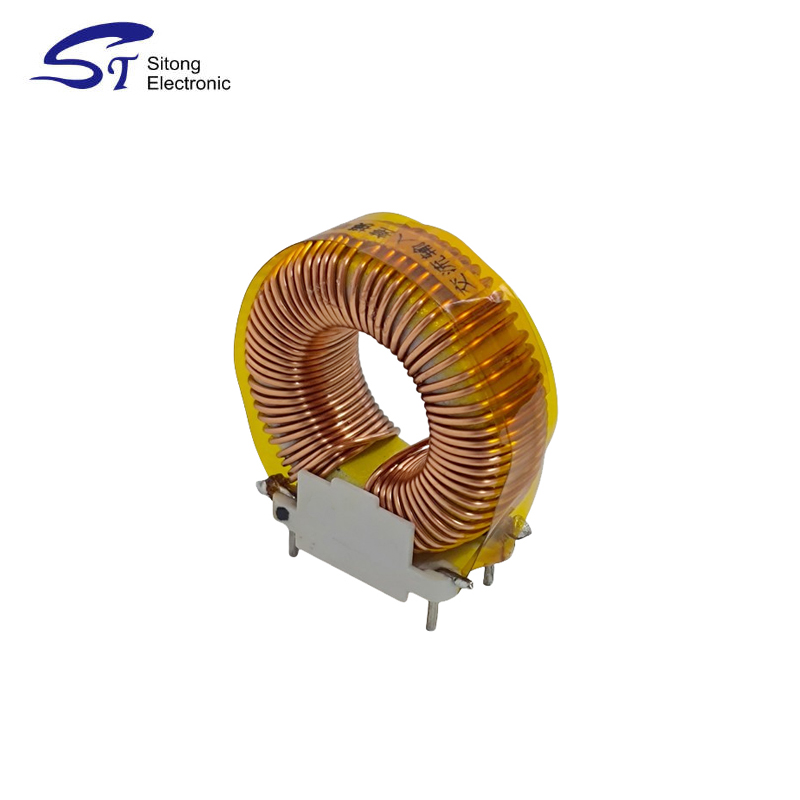

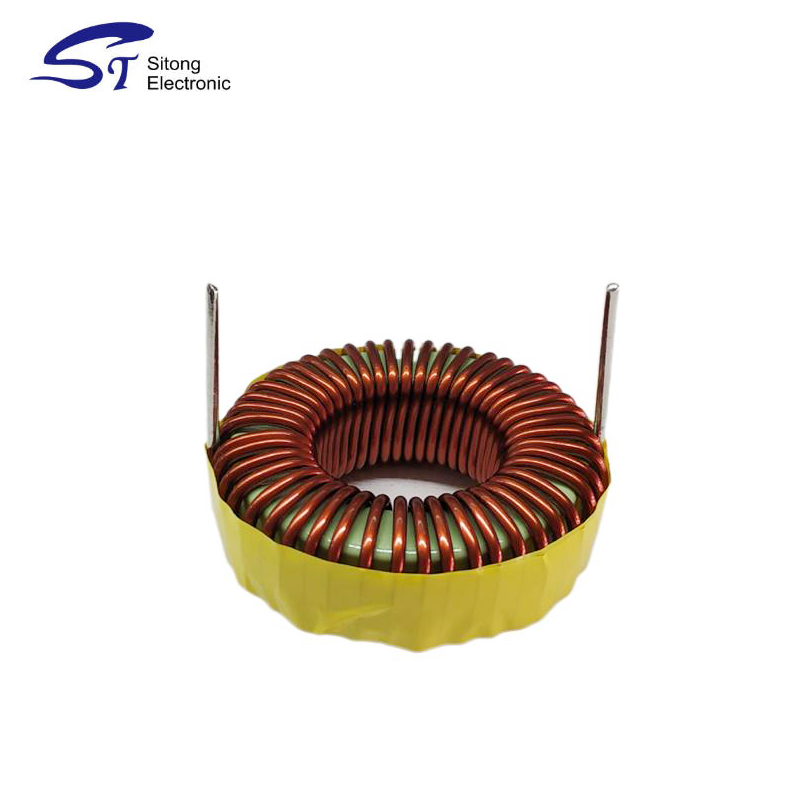

Iron Powder Core Filter Inductor:* Core features:
Made by pressing insulated carbonyl iron powder particles, it has a "distributed air gap". This is its most important characteristic, which makes its anti - saturation ability extremely strong, and the inductance decreases gently as the current increases.
* Advantages: Excellent DC bias characteristics: It can withstand large DC currents. Low cost. The saturation curve is gentle, with a high safety margin for design.
* Disadvantages: The magnetic permeability is relatively low, and the high - frequency losses (mainly core losses) are relatively large.
* Typical applications: Input/output differential mode filter inductors for switching power supplies. Energy storage inductors in DC - DC converters such as Boost/Buck. Power factor correction (PFC) inductors.
* Common colors: Different colors represent different materials and performance curves Red - black (-2 material) Yellow - red (-8 material) Green - red (-18 material) Yellow - white (-26 material) Gray - yellow (-33 material) Green - yellow (-40 material) Blue - green (-52 material)
Electrical Performance Overview of Iron Powder Core Filter Inductors Iron powder cores are magnetic rings formed by pressing high-purity carbonyl iron powder particles that have been surface-insulated (e.g., with phosphate) and mixed with a binder. Their core performance originates from this unique "powdered and insulated" structure. I. Core Performance Characteristics
Unparalleled Anti-DC Saturation Capability and Gentle Saturation Characteristics
Mechanism: Countless insulated iron powder particles create a perfect "distributed air gap." This results in a very "long" magnetic path that is difficult to saturate.
Performance: This is the most prominent advantage of iron powder cores. Their inductance (L) decreases most gently with increasing DC current (Idc), with no abrupt changes even near the saturation point.
Design Advantage: Engineers can use them with greater confidence, allowing for significant transient overload currents without fear of inductor failure, leading to robust system design.
Very High Saturation Flux Density
Typical Value: Bsat ≈ 1.4 Tesla (at 25°C), which is higher than that of Sendust (~1.05T) and most ferrites.
Significance: For the same size, an iron powder core can store more magnetic energy or handle higher peak currents. This is its core asset as a power inductor.
High Cost-Effectiveness
Raw materials (iron powder) are inexpensive, and the manufacturing process is mature, making it the lowest-cost option among all power inductor core materials. It holds an absolute advantage in price-sensitive applications.
High Mechanical Strength and Durability
Formed by powder compaction, the structure is robust, resistant to breakage, and can withstand certain levels of mechanical stress.
II. Main Performance Limitations
High High-Frequency Loss (Key Drawback)
Mechanism: Although the particles are insulated, eddy current and hysteresis losses remain significant at high frequencies. The insulation layers cannot completely prevent eddy currents generated within the particles by the high-frequency magnetic field.
Consequence: Operation at high frequencies (e.g., >100kHz) leads to significant core heating and reduced efficiency. This limits its maximum usable frequency.
Low Initial Permeability with a Wide Selectable Range
Range: Common materials (e.g., Mix-26, Mix-52) offer permeabilities from 3μ, 10μ, 26μ, 35μ, up to 75μ. Lower values indicate stronger anti-DC capability but require more turns to achieve the same inductance.
Impact: The material mix number must be carefully selected based on current and frequency requirements.
Possible Audible Noise
Exhibits a certain level of magnetostriction, which may cause slight audible noise under certain operating conditions (e.g., light-load intermittent mode), though typically less severe than in gapped ferrites.
Relatively Poor Temperature Stability
III. Key Electrical Parameters and Selection Parameter/Characteristic | Iron Powder Core Performance and Implications | DC Bias Curve | Extremely gentle, the primary basis for selection. Must ensure inductance attenuation at maximum DC current is acceptable (e.g., -30%). | Core Loss Curve | Relatively high. Must calculate flux swing (ΔB) based on operating frequency (f) and ripple current (ΔI) to check if temperature rise is permissible. | Optimum Operating Frequency | Typically below 200kHz. Offers the best cost-performance in the 50kHz-150kHz range. Loss increases sharply beyond 300kHz. | Typical Materials | -26 Material (Yellow/White): Most versatile, μ=75, good overall performance. | -52 Material (Blue/Green): μ=75, but with lower high-frequency loss than -26 material; an improved version. | -2 Material (Red/Transparent): μ=10, used for very high current, very low permeability applications. |
IV. Direct Comparison with Sendust (Fe-Si-Al) Characteristic | Iron Powder Core | Sendust Powder Core | Advantage | Saturation Gentleness (Anti-Bias) | Excellent (Most Gentle) | Very Good | Iron Powder Core | Saturation Flux Density (Bsat) | High (~1.4T) | Medium (~1.05T) | Iron Powder Core | High-Frequency Loss | High | Low | Sendust | Cost | Very Low | Medium | Iron Powder Core | Audible Noise | Possible | None | Sendust | Temperature Stability | Fair | Good | Sendust |
Core Characteristics of Iron Powder Core Filter Inductors I. Decisive Advantages II. Main Performance Limitations
High High-Frequency Loss (Core Weakness)
Mechanism: Under high-frequency magnetic fields, the insulation layers cannot completely prevent eddy current generation within the iron powder particles, leading to significant core losses.
Consequence: As operating frequency increases (especially >100kHz), self-heating becomes severe and efficiency drops sharply, limiting its maximum applicable frequency.
Relatively Low Initial Permeability and Wide Variety
The permeability (µ value) range is very broad (from 3µ to over 100µ), requiring careful selection of the "mix number" based on current and frequency.
Low µ values (e.g., -8 mix, -18 mix) offer stronger anti-saturation capability but require more turns to achieve the same inductance, increasing copper loss.
Poorer Temperature Stability
Potential for Audible Noise
Exhibits magnetostriction, which may generate audible "buzzing" noise under specific operating conditions (e.g., light load, intermittent mode).
III. Application Characteristics: Clear Positioning The application domain of iron powder core inductors is defined by the combination of their "advantages" and "disadvantages," resulting in a very precise positioning: V. Key Selection Summary
Preferred Scenario: Iron powder core is the first choice when your design budget is extremely tight, operating frequency is not high (below 150kHz), but it needs to handle relatively large DC or peak currents.
Performance Compromise: Choosing iron powder core means you must accept its lower efficiency and higher temperature rise at higher frequencies, and you need to build margin into the thermal and efficiency budgets.
Material Selection: Select the mix number based on frequency and current requirements. For example, commonly used mixes include -26 (general-purpose), -52 (slightly better high-frequency loss), and -2 (very high current).
Primary Application Areas of Iron Powder Core Filter Inductors I. General-Purpose Switch-Mode Power Supplies (High-Volume Consumer Market) This is the largest and most central battleground for iron powder core inductors, primarily serving the high-volume, cost-sensitive manufacturing sector. II. Lighting Driver Field III. Industrial and Automotive Auxiliary Systems IV. Power Factor Correction Circuits V. Input Filtering |
